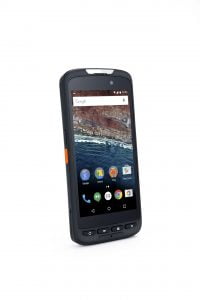

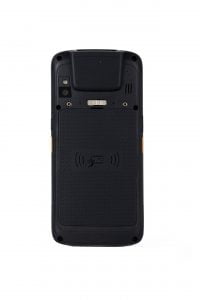

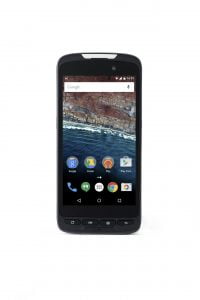

5″ Rugged Handheld Terminal EM-T52

– 5″ 720 x 1280 IPS Capacitive touch screen
– Android™ 8..1
– USB2.0 OTG
– NXP NFC(13.56M)
– GPS navigation
– Rugged IP65 protection level
– High strength Glass Touch Panel
– MIL-STD-810G, CE, Battery: UN38.3, MSDS, IEC6213

Barcode Scanner

Optional Accessories

Product price
Additional options total:
Order total:
Category: SKU: EM-T52

Description

Functions

• Support for Android 8.1 system
• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• Equipped with 4000mAh large capacity battery, the machine has a endurance of 7 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, more accurate positioning
• Equipped with front 2 million and rear 8 million pixel auto focus camera
• Support 1D / 2D, NFC and other functional modules to meet the application needs of multiple industries

Additional information

Application

Delivery, Logistics, Retail, Transportation, Warehouse

GENERAL

CPU

Quad- core ARM® 1.45GHz

CPU Type

MTK Quad-core ARM Cortex-A53

GPU

ARM MaliT720-MP3 450MHz

Operating System

Android 8.1

RAM

2GB LPDDR3

ROM

32GB

Memory expansion

SDHC/SDXC max128G

Sensors

E-Compass, Gyroscope, Light Sensor, Range Sensor

Buttons

HOME Key
Menu Key
Back Key
Barcode Trigger x2
Power, Volume +/-

Notifications

Sound, vibration, LED prompt

Audio

Built-in 8Ω/0.7W Speaker
Mic: Sensitivity:-42db, output resistance 2.2kΩ

Earphones Jack

∮3.5mm

Dimentions

156mm x 74mm x 17mm

Weight (with battery)

260g

CAMERA

Rear Camera

8.0MP

Front Camera

2.0MP

Focus mode

Autofocus

Rear Flash

Single color LED flash

DISPLAY

Brightness

300Nit

Screen Size

5"

Resolution

IPS 720×1280

Touch Panel

5 points Capacitive, G+FF, Rigidity: above 7H-Anti-scratch

POWER

Battery Capacity

Li-Po 3.8V/4000mAh

Charging

AC100V ~ 240V、50Hz/60Hz output DC 5V/2A
Pogo Pins

Interface

Micro USB 2.0, OTG

CONNECTIVITY

WWAN

CMCC 5M:
LTE 1/2/3/4/5/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8

Bluetooth

BT4.0 BLE

WLAN

WiFi 802.11 a/b/g/n 2.4G 5G

GPS

GPS; Capture sensitivity::-160 dBm;Cool Start Time:<60 seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz (configurable)

NFC

* ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
* ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
* MIFARE reader encryption mechanism (MIFARE 1K/4K)
* Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open tag, ISO/IEC 14443-4)
* Reading DESFire card
* ISO/IEC 15693/ICODE reader
* NFC-IP1 and NFC-IP2 protocols (ISO/IEC 18092 /ECMA 340 and ISO/IEC 21481/ECMA 352) 106 kbit/s to 424 kbit/s
* B’ and MIFARE card emulation

DURABILITY

Working Temperature

-10°C to 50°C

Storage temperature

-20 °C to 60 °C

Humidity

5%-95% (Non-Condensing)

Ingress protection

IP65

Drop test (Operating)

1.2m composite wood floors

Certifications

CE, NB, MIL-STD-810G, UN38.3, MSDS, IEC62133
