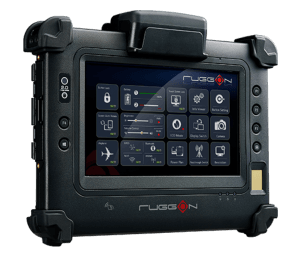

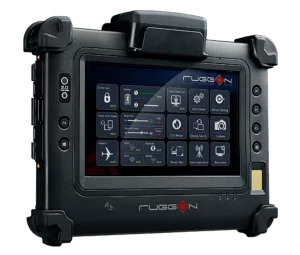

Blaxtone PM-311B – 7” Fully Rugged Windows TabletBlaxtone PM-311B – 7” Fully Rugged Windows Tablet

Blaxtone PM-311B – 7” Fully Rugged Windows Tablet

0 out of 5

Enquire

With high-performance fingerprint reader, MRZ reader and multiple security functions, PM-311B provides a high level of security for public safety needs.

Clear

Factory Add-ons

Add-ons and Expansions

Battery

Peripherals

Warranty *

Please make sure to read warranty information in our FAQ area.

SKU: N/A Category: Rugged Tablets
Blaxtone PM-311B – 7” Fully Rugged Windows Tablet
Compare

Description

  • 7″ capacitive multi-touch with Gorilla glass
  • 850 nits, optical bonding with AR/AF sunlight readable solution
  • IP65, MIL-STD-810G, 5″ drop resistance
  • NFC, GNSS, WLAN, WWAN, Bluetooth
  • Hot swappable battery design
  • A wealth of expansion options fulfill public safety application

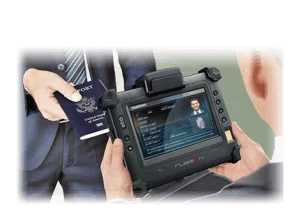

Designed to Secure

PM-311B, the world’s first ever tablet that can read up to 3 lines of machine-readable zone (MRZ) data – enabling it to capture, identify, and process passport, visa and ID card information. Equipped with a 508-dpi capacitive and high-performance fingerprint reader, PM-311B can collect more detailed and accurate fingerprint characteristics which can be matched to databases.

Best-In-Class Visibility

Incorporated with 850 nits display and class-leading optical bonding technology to ensure optimized readability under direct sunlight for mobile workers.

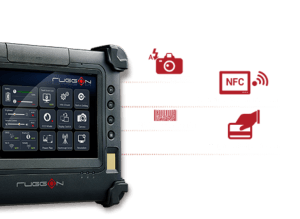

Exceptional Versatility

Equipped with all the connectivity options and data capturing capabilities you need in one compact form factor, PM-311B empowers you to do more.

Enhanced Security Perimeters

Besides the encrypted SSD with FIPS 140-2 certification, we also offer a customized one-button-push function which allows you to quickly erase SSD data during emergencies by leveraging Phoenix’s SecureWipe technology and implementing a number of global standard algorithms.

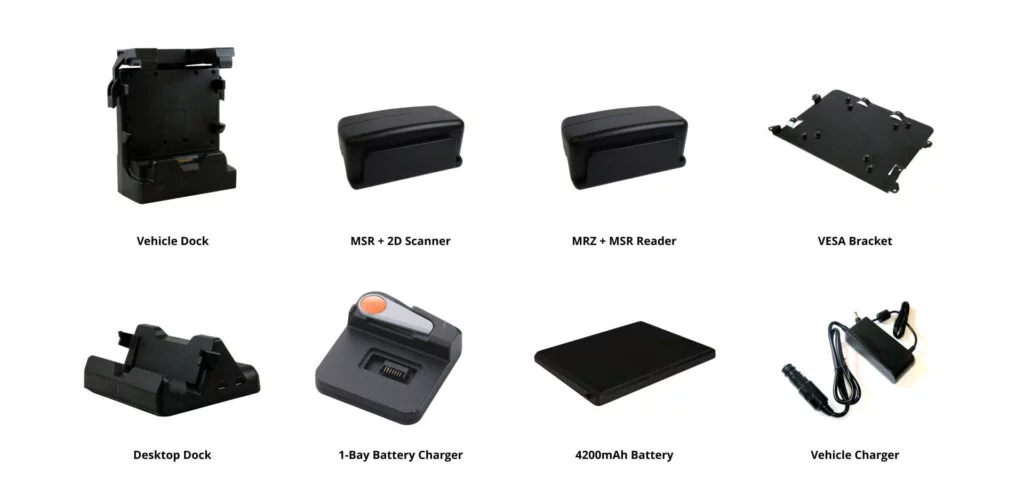

Available Accessories and Add-ons

Additional information

SYSTEM



Cooling System

Passive

CPU

Intel® Celeron® N2930 processor 1.83GHz

Video

Intel HD Graphics

System Memory

4GB DDR3L, expandable to 8GB

Internal Storage

128GB SSD, 256GB SSD

TF Card

Micro SD slot

*SIM

Micro SIM slot

Sensors

G-sensor
Gyroscope
E-Compass
Light sensor

Security

TPM2.0
Phoenix SecureWipe (optional)

Camera

Front 2 megapixels
Rear 8 megapixels auto focus with LED flash

Speaker

1.5W x 1

DISPLAY



Size

7"

Resolution

WSVGA (1024 x 600)

Brightness

850 nits, Optical Bonding with AR/AF solution

Touch

Capacitive multi-touch screen supports, 2mm hard tip stylus

Specs

Corning® Gorilla® Glass

CONNECTIVITY



WLAN

802.11 a/b/g/n/ac (Intel AC8265)

WWAN

4G LTE (optional)

Bluetooth

BT4.0 + EDR

GNSS

GPS, GLONASS
Beidou (Optional)

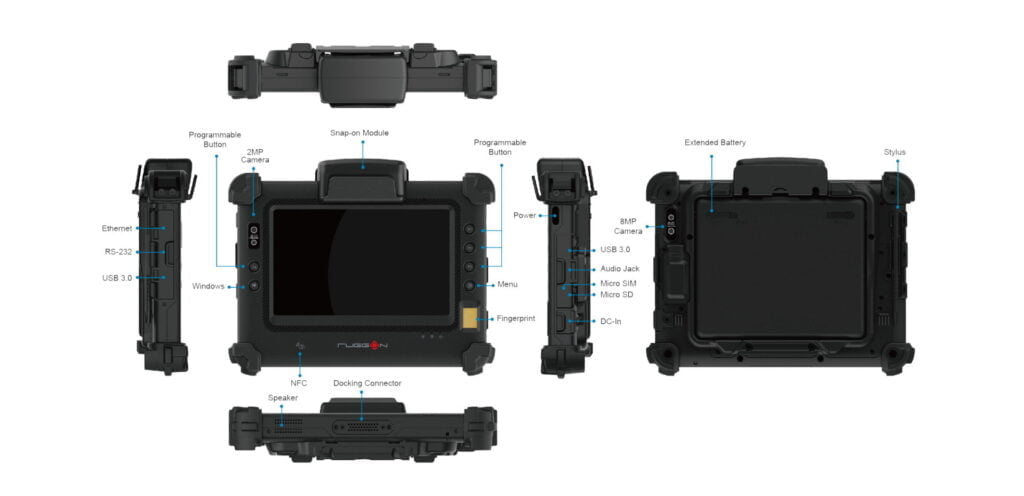

I/O INTERFACES



USB

USB 3.0 type A x 2

LAN

GbE (RJ45) x 1

Serial Ports

DB9 (RS232) ×1

Headphone Jack

Audio Jack (Headphone/Microphone combo) x 1

Docking Connector

32-pin x 1

DC-Jack

DC x1

DATA COLLECTION



NFC

Built-In

Expansion Modules (Optional)

MRZ reader+ MSR 2-in-1 module
2D barcode reader + MSR 2-in-1 module
Fingerprint reader (capacitive type, 508 dpi)

SOFTWARE



OS

Windows 10, Windows 8

CONTROL BUTTONS



Power Button

x1

Menu Button

x1

Windows button

x1

Programmable Function Key

x4

MECHANICA & ENVIRONMENTAL



Dimension (WxHxD)

22.5 x 16.8 x 2.7 cm (8.9" x 6.6" x 1.1") (W x H x D)

Weight

0.95 kg (2.09lb)

Protection Class

IP65

Drop - operating (MIL-STD-810G)

1.5m (5ft)

Shock - operating

MIL-STD-810G

Certifications

IP65
MIL-STD-810G
CE
FCC
CB

Operation Temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Humidity (MIL-STD-810G)

95% Non-Condensing

Lifespan

At least 5 years

POWER SUPPLY



Battery

Standard Pack: 2900 mAh, 7.5V
Extended Pack: 4200mAh hot swappable (Optional)

Power Adapter

AC adapter (65W, 100-240V AC, 50/60Hz)

ACCESSORIES



In-box

US/EU Power cord
Stylus
Shoulder Strap
Soft Handle
Hand Strap

Optional

Desktop Docking Station
Vehicle Docking Station
Vehicle charger
Stylus
Shoulder Strap
Soft Handle
Hand Strap
2900mAh battery
Extended 4200mAh battery
1-bay battery charger
VESA bracket

Warranty

2 Years Limited Warranty in Canada (Excluding Panel and Battery)
