Blaxtone PM-522 - 10.4” Fully Rugged TabletBlaxtone PM-522 - 10.4” Fully Rugged TabletBlaxtone PM-522 - 10.4” Fully Rugged Tablet

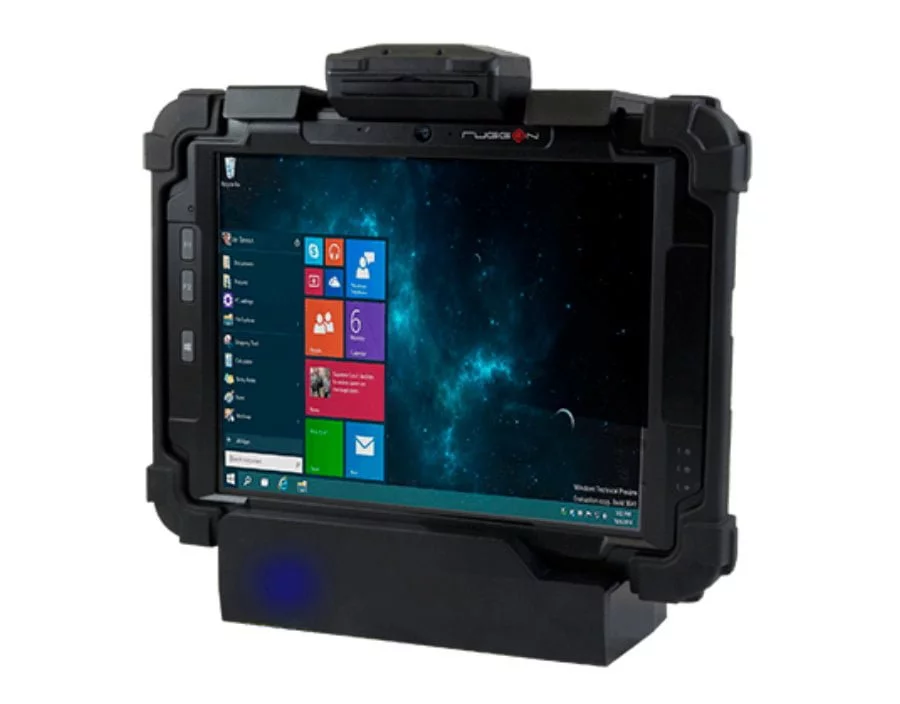

Blaxtone PM-522 – 10.4” Fully Rugged Tablet

0 out of 5

Enquire

Considering the requirements of field work, PM-522 features best-in-class robust structure, the complete RF technology and rich data-capture functions.

Clear

Add-ons

Battery

Peripherals

Warranty *

Please make sure to read warranty information in our FAQ area.

SKU: N/A Category: Rugged Tablets
Blaxtone PM-522 - 10.4” Fully Rugged Tablet
Compare

Description

  • Class-leading rugged structure with 6 feet drop resistant
  • 4:3 screen offers large viewing area
  • Capacitive multi-touch, sunlight readable
  • Benefit to maximum uptime with up to 10 hours battery life
  • A number of snap-on modules for data capture

Impressively Rugged Grade

As the best device for mobile workers, durability is a key factor in fulfilling each critical task. PM-522 meets a rigorous IP65 rating, 6 feet drop and MIL-STD-810G for vibration and shock resistance.

4:3 Screen with Class-Leading Specification

The 4:3 screen of PM-522 is equipped to the highest specification on the market and offers a large viewing area. It is easily compatible with existing software.

Dedicated Field Device

PM-522 comes with a number of functions for data capture, making it is a simpler and more efficient device for field workers.

Seamless Communication

Equipped with a seamless communication network, PM-522 offers faster processing, broader coverage, more stable and efficient transmission. The field workers can mobilize every task without limit.

Available Accessories and Add-ons

Additional information

SYSTEM



Cooling System

Passive

CPU

Intel® Dual Core Atom E3827 1.75 GHz

Video

Intel HD Graphics

System Memory

4 GB DDR3L

Internal Storage

64GB mSATA SSD (optional 128 GB / 256 GB)

TF Card

No

*SIM

Micro SIM slot

Sensors

G-sensor
Gyroscope
E-Compass
Light sensor

Security

TPM1.2

Camera

Front 2 megapixels
Rear 5 megapixels auto focus with LED flash

Speaker

1.5W x 1

DISPLAY



Size

10.4"

Resolution

XGA (1024 x 768)

Brightness

350 nits
700 nits sunlight readable (Optional)

Touch

10-point capacitive touch

CONNECTIVITY



WLAN

Wi-Fi 802.11 a/b/g/n/ac

WWAN

4G LTE (optional)

Bluetooth

4.0 + EDR

GNSS

GPS, GLONASS

I/O INTERFACES



USB

USB 3.0 x 1
USB 2.0 x 1

LAN

(via Mini USB to RJ-45 adapter) x 1

Headphone Jack

Audio Jack (Headphone/Microphone combo) x 1

Docking Connector

32-pin docking connector x 1

DC-Jack

DC x1

DATA COLLECTION



Expansion Options

2D barcode reader (snap-on)
Smart card reader (CAC) + GNSS (snap-on)
Magnetic stripe reader (snap-on)

SOFTWARE



OS

Windows 10 IoT Enterprise Entry

CONTROL BUTTONS



Power

x1

System Settings

x1

Windows button

x1

Touch Lock

x1

Programmable Function Key

x2

MECHANICA & ENVIRONMENTAL



Dimension (WxHxD)

27.5 x 20.4 x 2.7 cm (10.8" x 8" x 1.1") (W x H x D)

Weight

1.3 kg (2.87lb)

Protection Class

IP65

Drop - operating (MIL-STD-810G)

1.82m (6ft)

Shock - operating

MIL-STD-810G – 1.82m (6ft)

Certifications

IP65
MIL-STD-810G
CE
FCC
CB

Operation Temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Humidity (MIL-STD-810G)

5% ~ 95% Non-Condensing

Lifespan

At least 5 years

POWER SUPPLY



Battery

Standard Pack: 3800 mAh, 7.4V
Extended Pack: 4200 mAh, 7.4V, hot-swappable

Power Adapter

Universal AC 100V ~ 240V, 50~60Hz Input; 19VDC@3.42A, 65W

ACCESSORIES



In-box

US/EU Power cord
Stylus

Optional

Desktop Docking Station
Vehicle Docking Station
Vehicle charger
Stylus
Shoulder Belt
Handstrap
2D barcode reader (snap-on)
Smart card reader (CAC) + GNSS (snap-on)
Magnetic stripe reader (snap-on)
Standard 3800 mAh, 7.4V
Extended 4200 mAh, 7.4V, hot-swappable
Battery charger
VESA bracket

Warranty

2 Years Limited Warranty in Canada (Excluding Panel and Battery)
