Conquest F2 – Mini Rugged Phone

Conquest F2 Mini IP68 Waterproof Smartphone 3″ IPS display Android 9.0 Quad Core CPU, 3GB RAM 32GB ROM 3700mAh OTG NFC Face ID, Fingerprint

IMPORTANT: In North America this phone will only handle 2G and 3G Networks.

Clear
Product price
Additional options total:
Order total:
Categories: , SKU: CQ-F2-MINI

Description

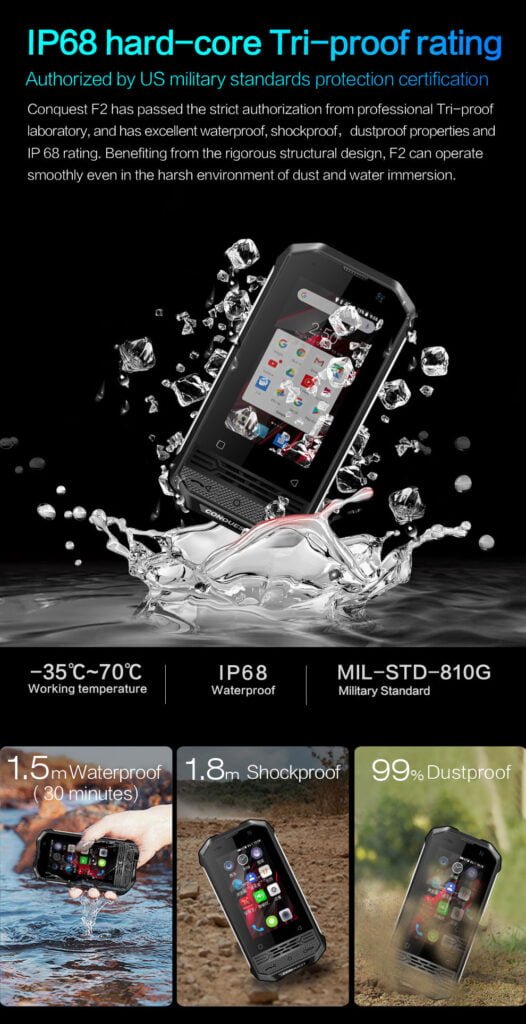

Coquest F2, Tiny Rugged SmartPhone, Powerful 1.5GHz Quad Core CPU with 3GB RAM. 32GB Storage with up to 1TB SD card support. 13MP Rear Camera and 5MP Fron Camera, Fingerprint Scanner. Loud speaker, Dual mic with noise cancellation, Wi-Fi, Bluetooth, POC and GPS. All this in tiny form factor with 3″ screen, powered by 3700mAh battery and only 198gram. Boats 360-degree waterproof, shockproof and dustproof MIL-STD-810G and IP68 protection to withstand harsh conditions and works under -35°C to 70°C Temperature ranges.

Additional information

Application

Auto Mechanics, Construction, Field Work, Fishery, Forestry, Mining, Outdoors, Rescue, Transportation

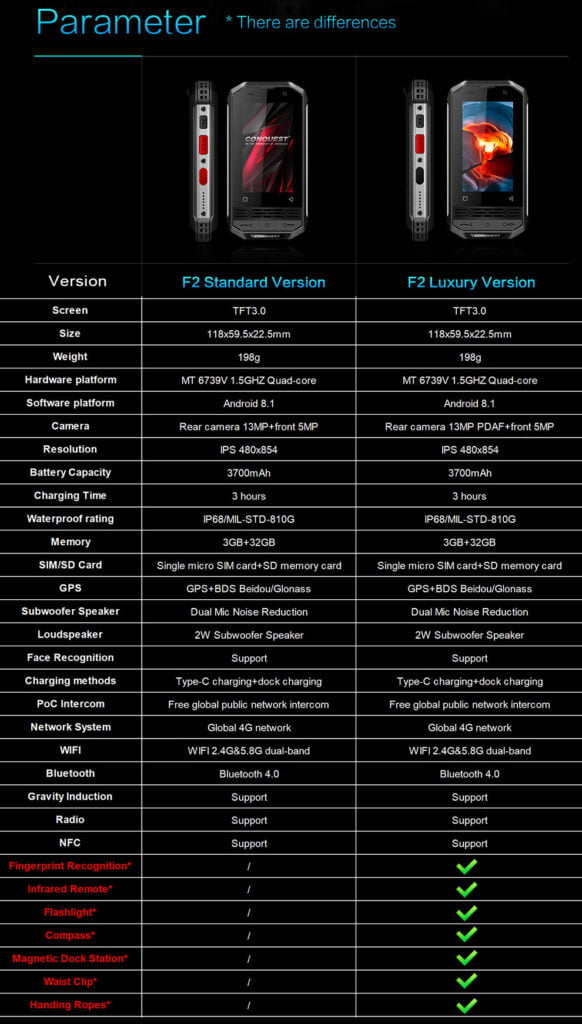

DESIGN



Operating System

Android 8.1

Dimentions

118×59.5×22.5mm

Weight

198g

DISPLAY



Screen Size

3"

Resolution

FHD+ IPS 480×854 waterdrop screen

Touch Panel

Multi touch capacitive screen

GENERAL



CPU

MediaTek (MT6739V)

CPU Type

ARM Cortex-A53, 4 Cores, 64 Bits, 1500 MHz

GPU

PowerVR GE8100, 570 MHz

RAM

3GB

ROM

32GB

Memory expansion

Micro SD Card (T-Flash Card) up to 1TB

Sensors

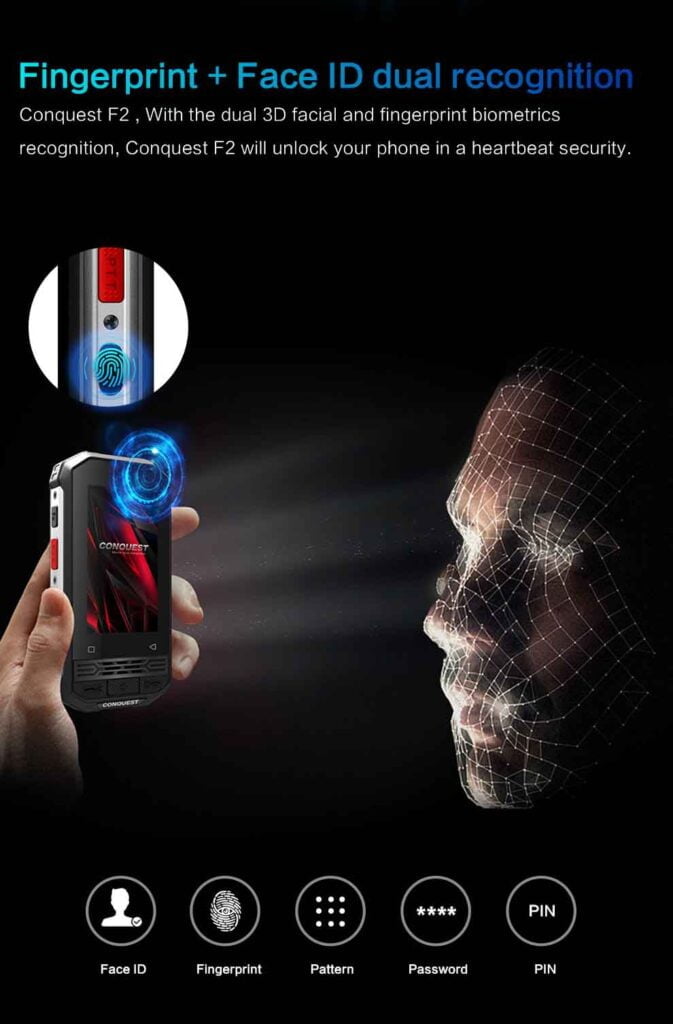

Accelerometer, E-Compass, Fingerprint, Gyroscope, Infrared, Light Sensor, Range Sensor

Notifications

Sound, vibration, LED prompt

Audio

Loudspeaker
Earpiece
Dual microphone noise cancellation
Smart PA

Earphones Jack

Type-C / Bluetooth

CAMERA



Rear Camera Type

Single Camera, 30fps

Rear Camera

13MP

Front Camera

5MP

Focus mode

Autofocus, Touch Focus

POWER

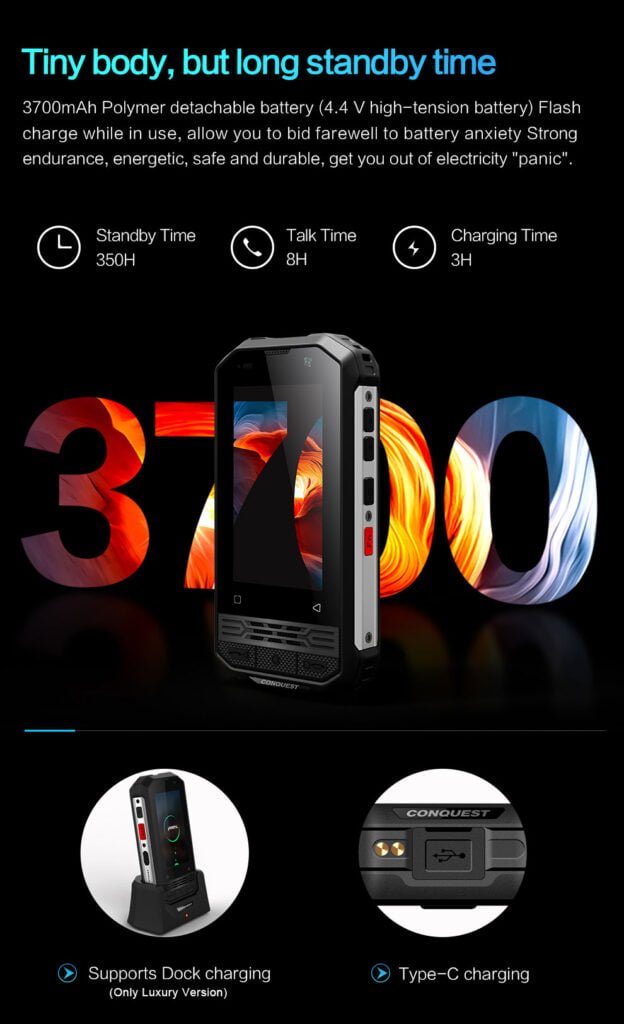

Battery Capacity

Li-Po 3700mAh

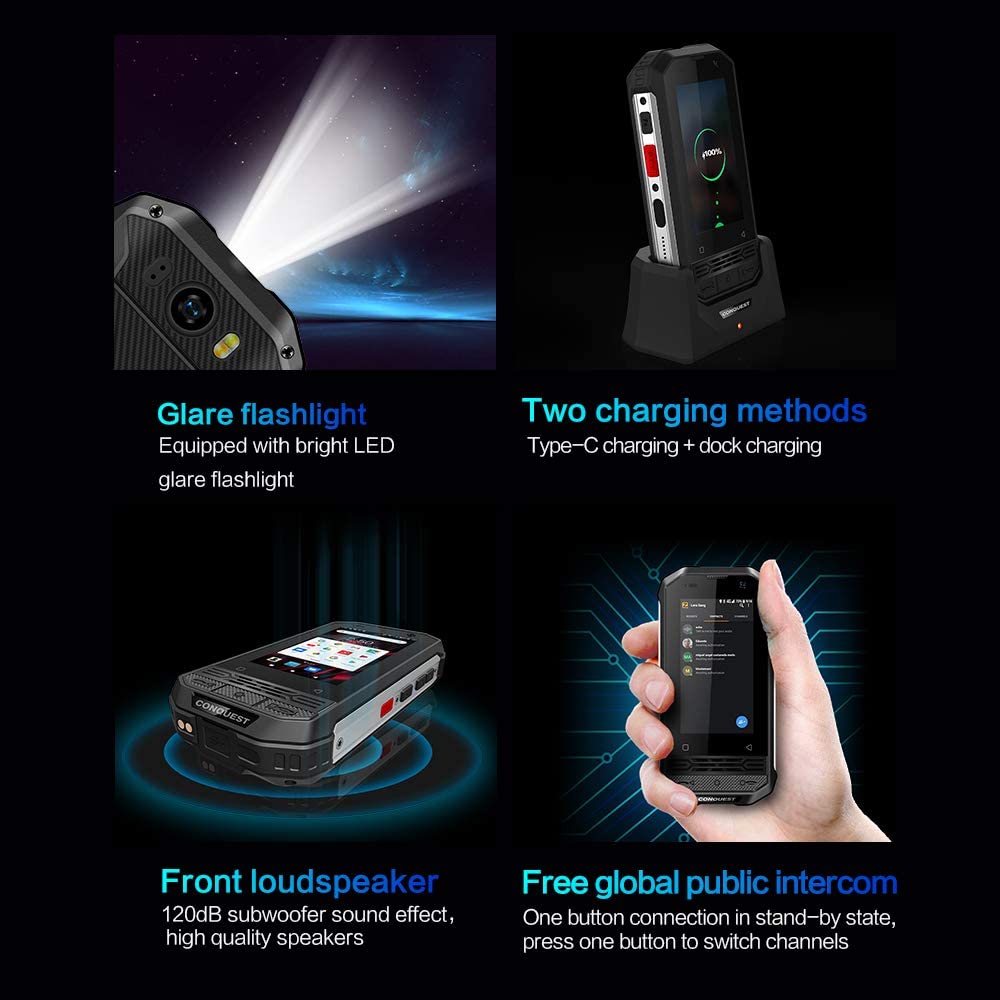

Charging

9V 2A

Interface

USB Type-C, Version: 2.0
OTG
Dock

CONNECTIVITY



SIM Quantity

Triple SIM

SIM Type

Nano SIM

WWAN

Dual SIM (Dual Stand-by) + Third SIM (Satellite Connectivity)

2G Bands: GSM 850 MHz (B5), GSM 900 MHz (B8), GSM 1800 MHz (B3), GSM 1900 MHz (B2)
3G Bands: W-CDMA 850 MHz (B5), W-CDMA 900 MHz (B8), W-CDMA 1900 MHz (B2), W-CDMA 2100 MHz (B1)
WCDMA: (B1/2/5/8)
4G Bands: TDS(B34/39)
FDD(B1/3/5/7/8/20/28A/B)
TDD(B38/39/40/41)
CDMA2000 1X/EVDO BCO

Intercom

POC (Push-To-Talk over Cellular) – Please Note that POC is used with 3rd parity app and uses your internet connection!

Bluetooth

BT4.0

WLAN

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI

GPS

GPS, A-GPS, GLONASS, BeiDou, Galileo

NFC

Yes

FM Radio

No

DURABILITY



Working Temperature

-30℃~70℃

Storage temperature

-50 °C to 80 °C

Humidity

5%-95% (Non-Condensing)

Ingress protection

IP68

Certifications

MIL-STD-810G, GSM, CE, UN38.3, MSDS, IEC62133 ,ISO15693, ISO1443A/B

MISCELLANEOUS



Package Contents

Standard Version
1 x Conquest F2 phone
1 x Type-C USB Cable
1 x User Manual
1 x Packing box
1 x Adapter

Luxury Version
1 x Conquest F2 phone
1 x Type-C USB Cable
1 x Magnetic Docking Station
1 x Waist Clip
1 x Hand Strap
1 x User Manual
1 x Packing box
1 x Adapter
