Conquest S12 Pro Rugged Phone DMR/POC – Intrinsically Safe (ATEX)

Conquest S12 Pro IP68 Waterproof Smartphone 5.99″ IPS Android 9.0 Helio P70 Octa Core 6GB RAM 128GB ROM 8000mAh OTG NFC Face ID

Safety Rating: Zone 1, Div 2, Ex ib IIC T4 Gb/Ex tD A21 IP68 T135℃

Clear
Product price
Additional options total:
Order total:

Description

Conquest Phones is specializes in building highly durable smartphones for professionals or active people who need a handset that can survive a harsh lifestyle. Its products vary, going from feature phones that cover one’s basic modern needs to flagships that are both durable and affordable.Serving users of military police, public safety, petrochemical, coal and minerals, air transportation, rail transit, power and water conservancy, construction, forestry and fishery, disaster reduction and rescue, etc.

Additional information

Safety Rating

A21, Div2, Ex, Gb, ib, IIC, T135℃, t4, tD, Zone 1

Application

Construction, Field Work, Fishery, Forestry, Outdoors, Rescue, Transportation, Warehouse

DESIGN

Operating System

Android 9.0

Color

Black, Yellow, Red

Dimentions

172×84.5×17.9mm

Weight

380g

DISPLAY

Screen Size

5.99"

Resolution

2160×1080 pixel IPS Corning Gorilla 5th Generation Glass

Touch Panel

Multi touch capacitive screen

GENERAL

CPU

Helio P70 (MTK6771)

CPU Type

64 bit – 4x 2.3 GHz ARM Cortex-A53, 4x 1.65 GHz ARM Cortex-A53, Cores: 8, High Performance

GPU

ARM Mali-G71 MP2, 770 MHz, Cores: 2

RAM

4GB, 6GB

ROM

128GB, 64GB

Memory expansion

Micro SD Card (T-Flash Card) up to 512GB

Sensors

E-Compass, Fingerprint, G-Sensor, Gyroscope, Light Sensor, Range Sensor

Notifications

Sound, vibration, LED prompt

Audio

Built-in Speaker with Smart PA amplifier
Built-in Mic with dual noise reduction

Earphones Jack

Type-C / Bluetooth

CAMERA

Rear Camera Type

Dual camera, 30fps, Face Detection

Rear Camera

2.0MP, 21.0MP

Front Camera

13.0MP

Focus mode

PDAF (Phase Detection Auto-Focus)

POWER

Battery Capacity

Li-Po 8000mAh

Charging

5V 2A

Interface

Type-C
OTG
Magnetic Pins
Dock

CONNECTIVITY

SIM Quantity

Dual SIM

SIM Type

Nano SIM

WWAN

2G Bands: GSM: 850/900/1800/1900MHz
3G Bands: TD-SCDMA 1880-1920(B39)/2010-2025(B34)MHz
WCDMA 850/900/1700/1900/2100MHz
4G Bands: TDD-LTE: 2500(B38)/1900(B39)/2300(B40)/2500(B41)MHz
FDD-LTE 700(B17&B12)/800(B20&B19)/850(B5)/900(B8)/1700(B4)/1800(B3)/1900(B2)/2100(B1)/2600(B7)MHz

WCDMA, GSM, FDD-LTE, TDD-LTE, TD-SCDMA

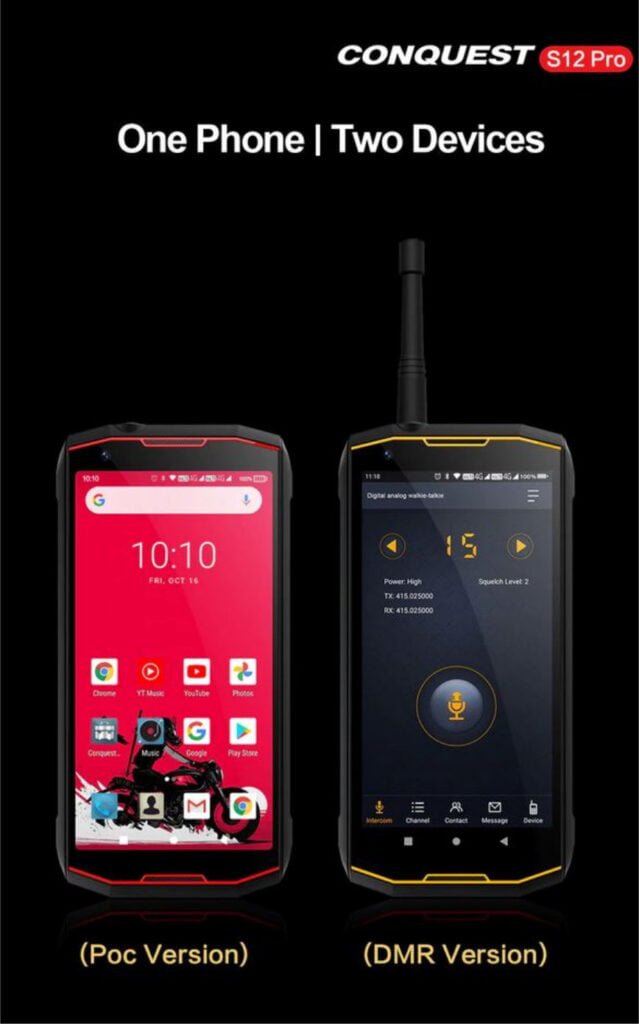

Intercom

POC (Push-To-Talk over Cellular) – Please Note that POC version comes without antenna!
DMR-UHF – 2W (400-470MHz)
DMR-VHF – 2W (350MHz)

Bluetooth

BT4.0

WLAN

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI

GPS

A-GPS, GLONASS, BDS

NFC

Yes

FM Radio

No

DURABILITY

Working Temperature

-30℃~70℃

Storage temperature

-50 °C to 80 °C

Humidity

5%-95% (Non-Condensing)

Ingress protection

IP68

Certifications

MIL-STD-810G, GSM, CE, UN38.3, MSDS, IEC62133 ,ISO15693, ISO1443A/B

MISCELLANEOUS

Package Contents

1 x Conquest S12 Pro phone
1 x Type-C USB charge
1 x User Manual
1 x Special screwdriver
1 x Packing box
1 x Adapter
