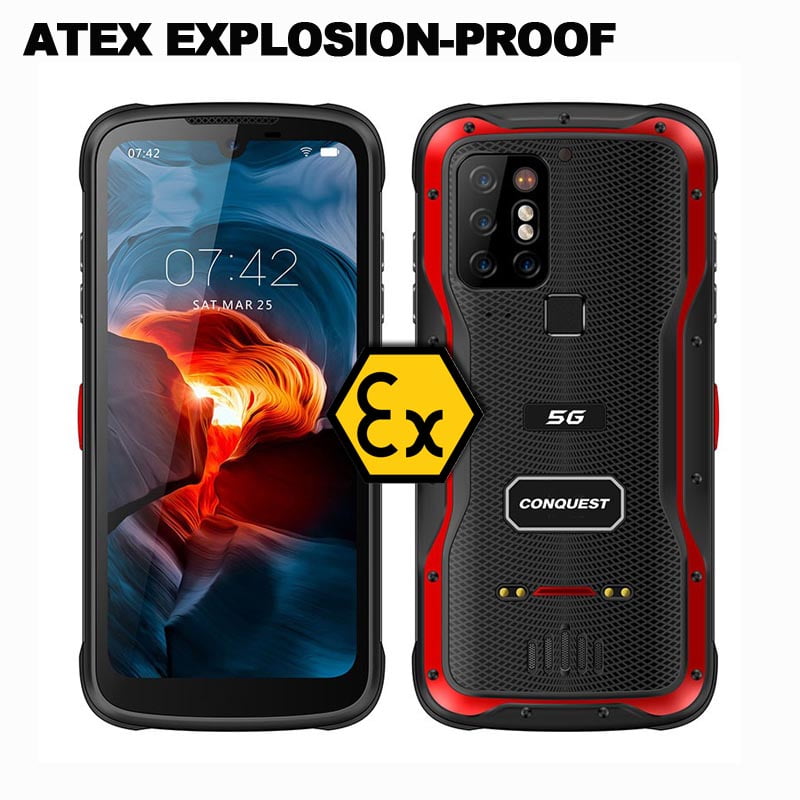

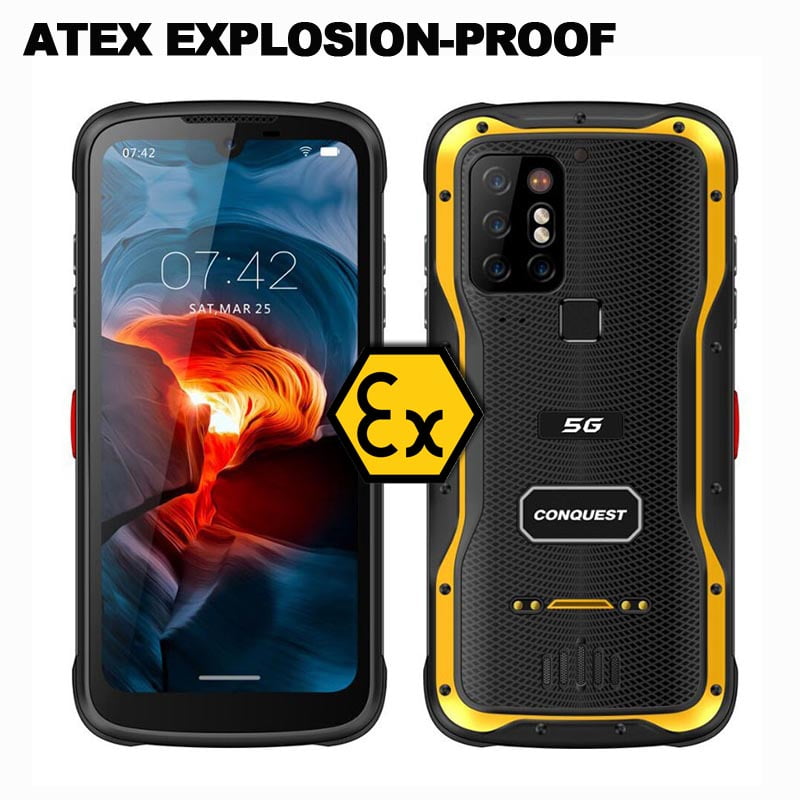

CONQUEST S20 5G (ATEX)

Conquest S20 5G 6.3 Inch Night Vision Smartphone IP68 Waterproof 48MP Four Camera 8GB RAM 256GB ROM Global Version

Clear
Product price
Additional options total:
Order total:
Categories: , SKU: CQ-S20-1

Description

Additional information

Application

Auto Mechanics, Chemical, Construction, Delivery, Exploration, Field Work, Fishery, Forestry, Healthcare, Land Survey, Law Enforcement, Logistics, Maintenance, Mining, Oil & Gas, Outdoors, Pharmaceutical, Port, Property Management, Railway, Rescue, Retail, Security, Transportation, Warehouse

Safety Rating

21, 2D, 2G, Ex, ib, ibD, II, IIC, T5, T95°C

DESIGN

Operating System

Android 11

Color

Black, Red, Yellow

Dimentions

170mm x 81mm x 14.9mm

Weight

380g

DISPLAY

Screen Size

6.3"

Resolution

IPS 1080×2340
402 PPI
19:9 Ratio

Touch Panel

10 Point touch, incell

GENERAL

CPU

MediaTek MT6873

CPU Type

Dimensity 800 – 4x ARM Cortex-A76 (2 GHz), 4x ARM Cortex-A55 (2 GHz), ARM Mali-G75 MC5, APU 3.0, 5G Modem (2CC), MiraVision (4K HDR Video, 80MP Photo), Wi-Fi 5, Bluetooth 5.1, UFS 2.2, 16GB LPDDR4x Support

GPU

ARM Mali-G57 MP4

RAM

8GB

ROM

128GB, 256GB

Sensors

Accelerometer, E-Compass, Fingerprint, G-Sensor, Geomagnetic, Gesture, Gyroscope, Infrared, Light Sensor, Proximity, Range Sensor

Notifications

Sound, vibration, LED prompt (Breathing Light)

Audio

Built-in 120dB, 2 times the volume of regular phone with 2W Smart PA amplifier.
Double silicon wheat(Noise Reduction Mic)

Earphones Jack

Type-C / Bluetooth

CAMERA

Rear Camera Type

Triple camera, 30fps, Face Detection + Dual Night Vision

Rear Camera

16MP, 2.0MP, 20MP, 48MP, Night Version Camera

Front Camera

16MP

Focus mode

PDAF (Phase Detection Auto-Focus)

POWER

Battery Capacity

Li-Po 8000mAh

Charging

9V / 2A
QI Wireless Charging 18W
4 Charging methods

Interface

Type-C
OTG
Magnetic Pins
Dock

CONNECTIVITY

SIM Quantity

Dual SIM

SIM Type

Nano SIM

WWAN

GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
GSM:B2/3/5/8
WCDMA:B1/2/4/5/6/8/19
TDS:B34/39
CDMA:BC0/BC1/BC10
TDD:B34/38/39/40/41
FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66
5G: N1/3/5/8/20/28/38/41/77/78/79

Bluetooth

BT5.0

WLAN

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI – Hot spot(2.0)

GPS

GPS, Glonass, Beidu, Galileo

NFC

Yes – 13.56MHZ ISO15693, ISO1443A/B

FM Radio

Yes (No headphones needed)

DURABILITY

Working Temperature

-30℃~70℃

Storage temperature

-50 °C to 80 °C

Humidity

5%-95% (Non-Condensing)

Ingress protection

IP68/IP69K

Certifications

MIL-STD-810H, GSM, CE, UN38.3, MSDS, IEC62133, ISO15693, ISO1443A/B

MISCELLANEOUS

Package Contents

1 x Conquest S20 5G phone
1 x Type-C USB cable
1 x Magnetic Charging Cable
1 x Wireless Charger
1 x Dock
1 x Belt Clip
1 x Lanyard
1 x User Manual
1 x Adapter
