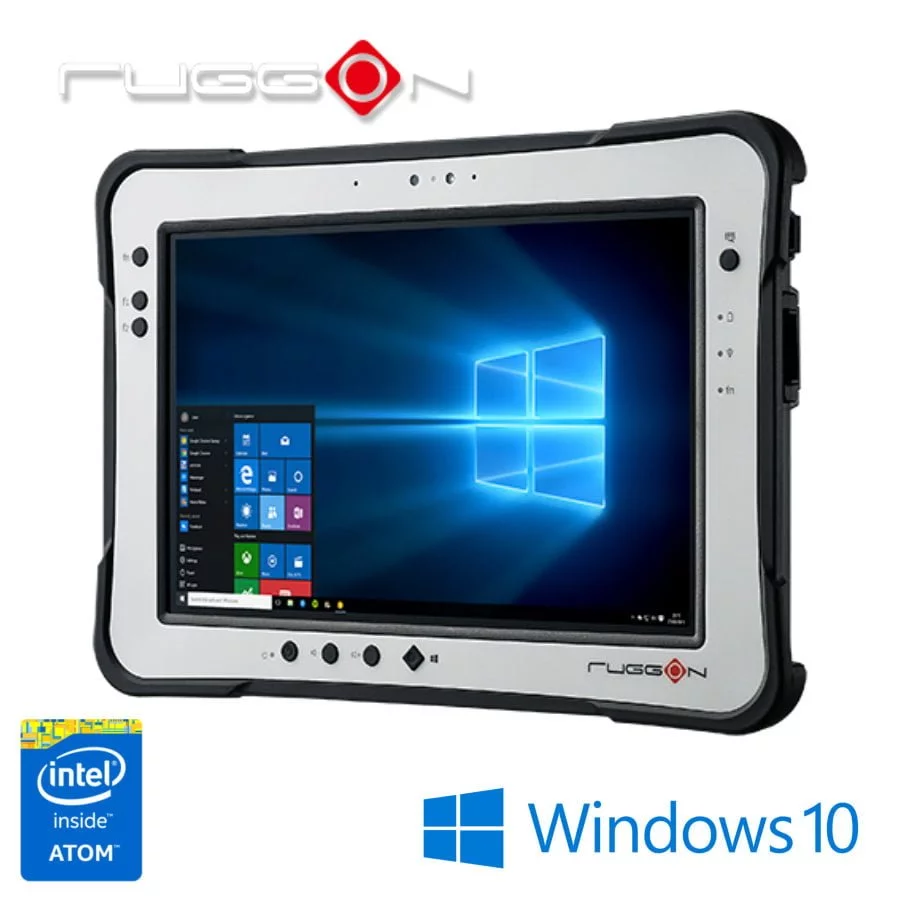

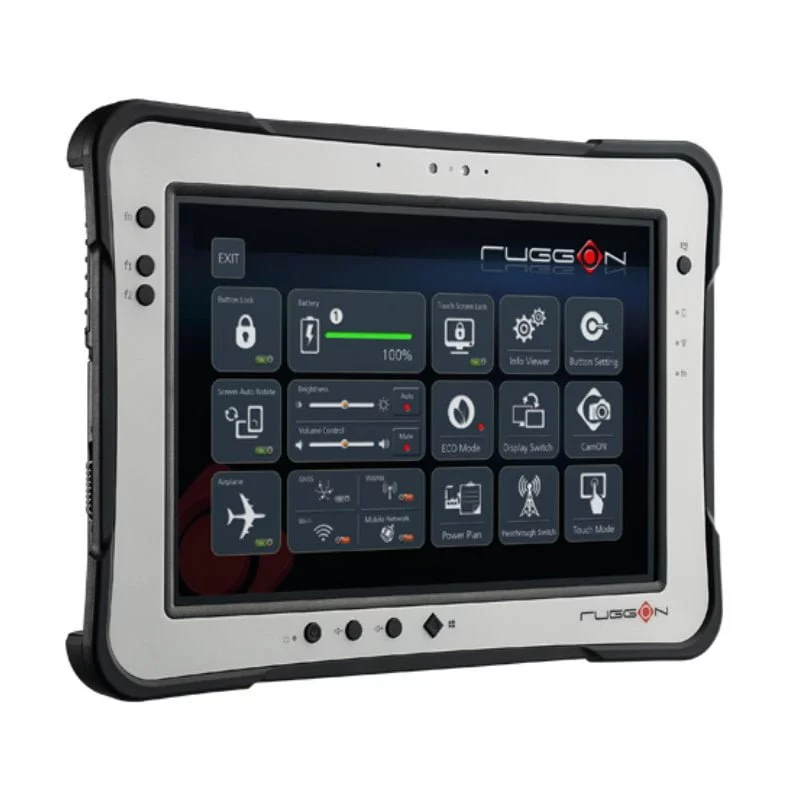

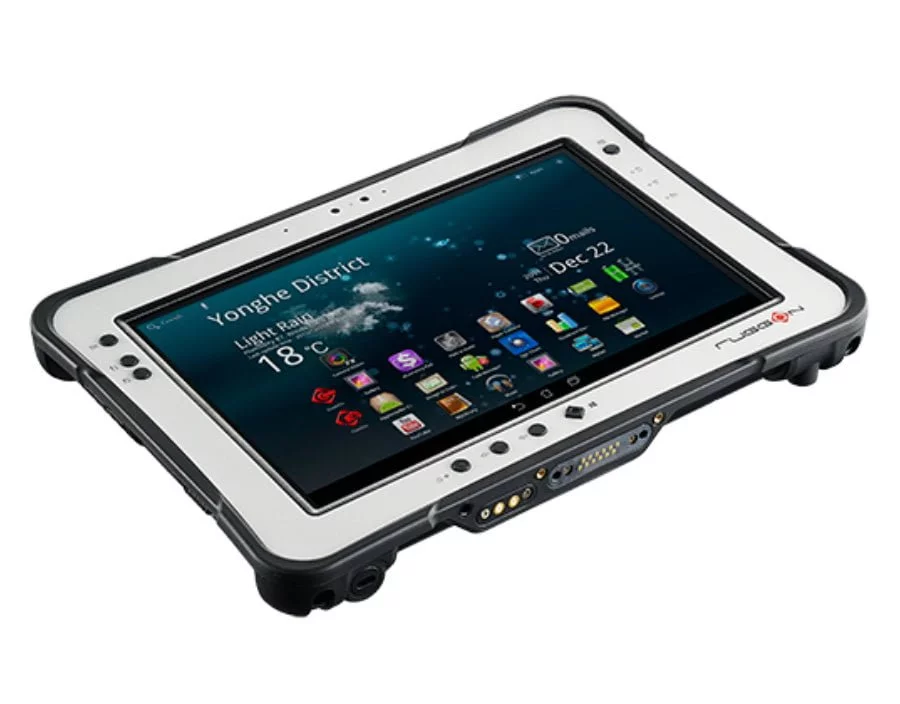

Rextorm PM-521 – 10.1” Fully Rugged Tablet

Perfectly balanced performance, yet competitive pricing. The PM-521 offers an unparalleled operating experience and cost-effective option.

Add-Ons

NFC / Barcode

(Can't be used on Android OS)

SSD Upgrade

Product price
Additional options total:
Order total:
Category: SKU: PM-521

Description

  • Intel® Atom™ processor E3827 1.75 GHz
  • IP65, MIL-STD-810G, 5 feet drop resistant
  • 1000 nits sunlight readable display
  • Capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus; digitizer by request
  • GNSS, Wi-Fi, Bluetooth and optional 4G LTE
  • Hot swappable battery design
  • Wide expansion design for data capture
  • Dual pass-through connector for WLAN, GNSS, WWAN

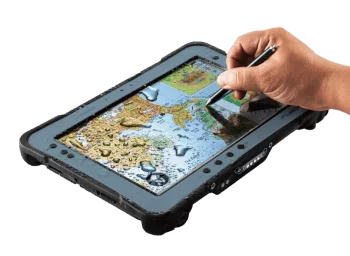

Beyond the Touch

Combined with advanced touch technology, Rextorm can ignore unintended touches including palm, water mist and rain drops, while ensuring correct data and command input. Paired with our 2mm hard tip of stylus, the PM-521 ensures extra accurate touchscreen interactions. Incorporated Gorilla Glass and glove touch function into tablet to resist external damage and fulfill field needs, PM-521 is truly dedicated device for mobile workers.

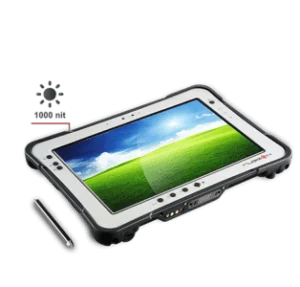

Best Ever Viewing Experience

Rextorm, the first-to-market 10.1” fully-rugged tablet with 1000 nits brightness sunlight readable display, is combined with high-resolution WUXGA (1920×1200), optical bonding technology and Gorilla Glass to enhance viewability in direct sunlight, while increasing viewing performance with attention to detail.



Ready for Field Work

The Rextorm PM-521 comes with numerous I/O ports that provide exceptional connectivity options, including Ethernet (RJ-45), RS-232. And the extendible design of data collection and programmable function buttons can enhance functionality and product capability.



A Perfect Link@ Anytime, Anywhere

Equipped with the latest and complete communication technology, mobile workers can experience precise positioning, faster processing, broader coverage and more stable data transfer even around buildings or trees. For in-vehicle usage, seamless connection is also uninterrupted through switchable dual pass-through connector.



Enhanced Security Perimeters

Beside supported TPM (Trusted Platform Module) , we also offer a customized one button push function to quickly erase SSD data during emergencies by leveraging Phoenix’s SecureWipe technology and implementing a number of global standard algorithms.



Long-lasting Power

A hot swappable battery design can be switched in and out without ever turning off the device. For extended field usage, a high capacity battery provides up to 12 hours of battery life. For extreme power savings, ECO mode enabled by RuggON’s DashON can extend battery life even further.

*The listed battery life is based on MobileMark 2012® media mode testing.

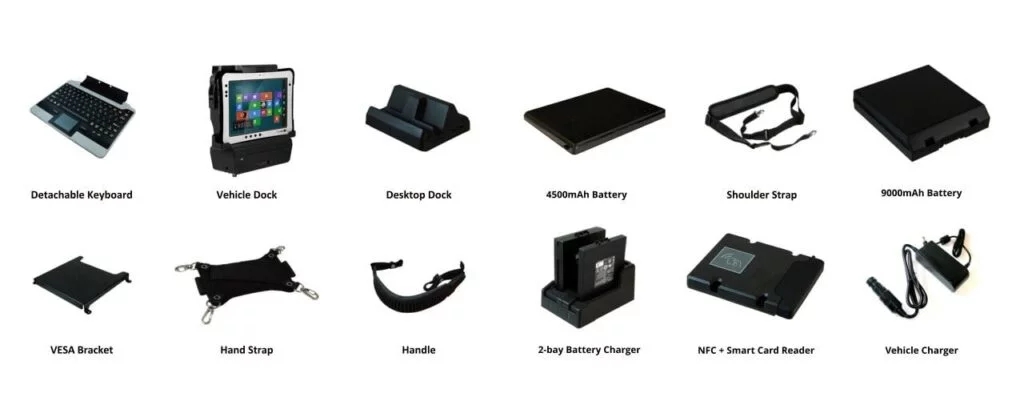

Available Accessories and Add-ons

Additional information

Application

Construction, Delivery, Field Work, Forestry, Land Survey, Law Enforcement, Logistics, Outdoors, Property Management, Railway, Rescue, Retail, Security, Transportation, Warehouse

DESIGN

Operating System

Windows 10 IoT Enterprise

Color

Black / Light Grey

Dimentions

28 x 19.5 x 2.3 cm (11” x 7.7” x 0.9”) (W x H x D)

Weight

1.33 kg (2.93 lbs)

DISPLAY

Screen Size

10.1"

Resolution

WUXGA (1920 x 1200) TFT LCD

Brightness

1000Nits

Touch Panel

Capacitive multi-touch screen supports, 2mm hard tip stylus, sunlight readable
Corning® Gorilla® Glass, glove touch, water rejection, palm touch rejection

GENERAL

CPU

Atom E3827

CPU Type

Intel® Atom™ processor E3827 1.75 GHz

GPU

Intel HD Graphics

RAM

4GB

ROM

128GB, 256GB

Memory expansion

Micro SD slot

Sensors

E-Compass, G-Sensor, Gyroscope, Light Sensor

Security

TPM 1.2
Phoenix SecureWipe (Optional)
Fingerprint Reader (Optional)

Notifications

Sound, LED prompt

Audio

1.5W x 1

Earphones Jack

Audio Jack (Headphone/Microphone combo) x 1

CAMERA

Rear Camera Type

Single camera

Rear Camera

5.0MP

Front Camera

2.0MP

Focus mode

Auto-Focus

POWER

Battery Capacity

4500mAh hot swappable, 9000mAh hot swappable

Charging

AC adapter (65W, 100-240V AC, 50/60Hz)

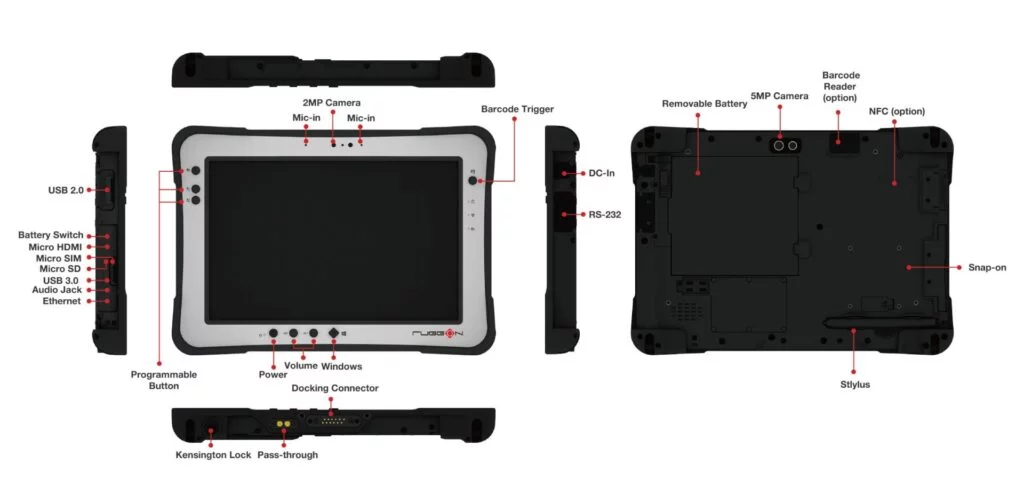

Interface

Docking Connector 12-pin x 1
RF Pass-through x 2
DC-Jack x1
Micro HDMI x 1
Power x1
Volume +/-
Windows button x1
Trigger (barcode) x1
Programmable Function Key x3 (FN/F1/F2)
USB 3.0 x1
USB 2.0 x 1, x2 (Optional)
LAN GbE (RJ45) x 1
Serial Port DB9 (RS232) ×1 (optional)
Snap-on Connector For easy customization (Optional)

CONNECTIVITY

SIM Quantity

Single SIM

SIM Type

Micro SIM

WWAN (Optional)

GSM: GSM850(B5)/900(B8)/1800(B3)/1900(B2);
WCDMA:B1(2100)/B2(1900)/B5(850)/B8(900)
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20
LTE-TDD: B38/B39/B40/B41(B)2550-2655MHz
TD-SCDMA:B34/B39 EVDO:BC0

Intercom

N/A

Bluetooth

4.0 + EDR

WLAN

802.11 a/b/g/n/ac (Intel AC8265)

GPS

GPS, GLONASS, Beidou

NFC

NFC + Smart card reader 2-in-1 module
UHF RFID reader (Optional)

FM Radio

N/A

DURABILITY

Working Temperature

-20°C to 50°C

Storage temperature

-30°C to 70°C

Humidity

5% ~ 95% Non-Condensing

Ingress protection

IP65

Certifications

IP65
MIL-STD-810G
CE
FCC
CB

MISCELLANEOUS

Package Contents

US/EU Power cord
Stylus
Shoulder Belt
Soft Handle
Handstrap
